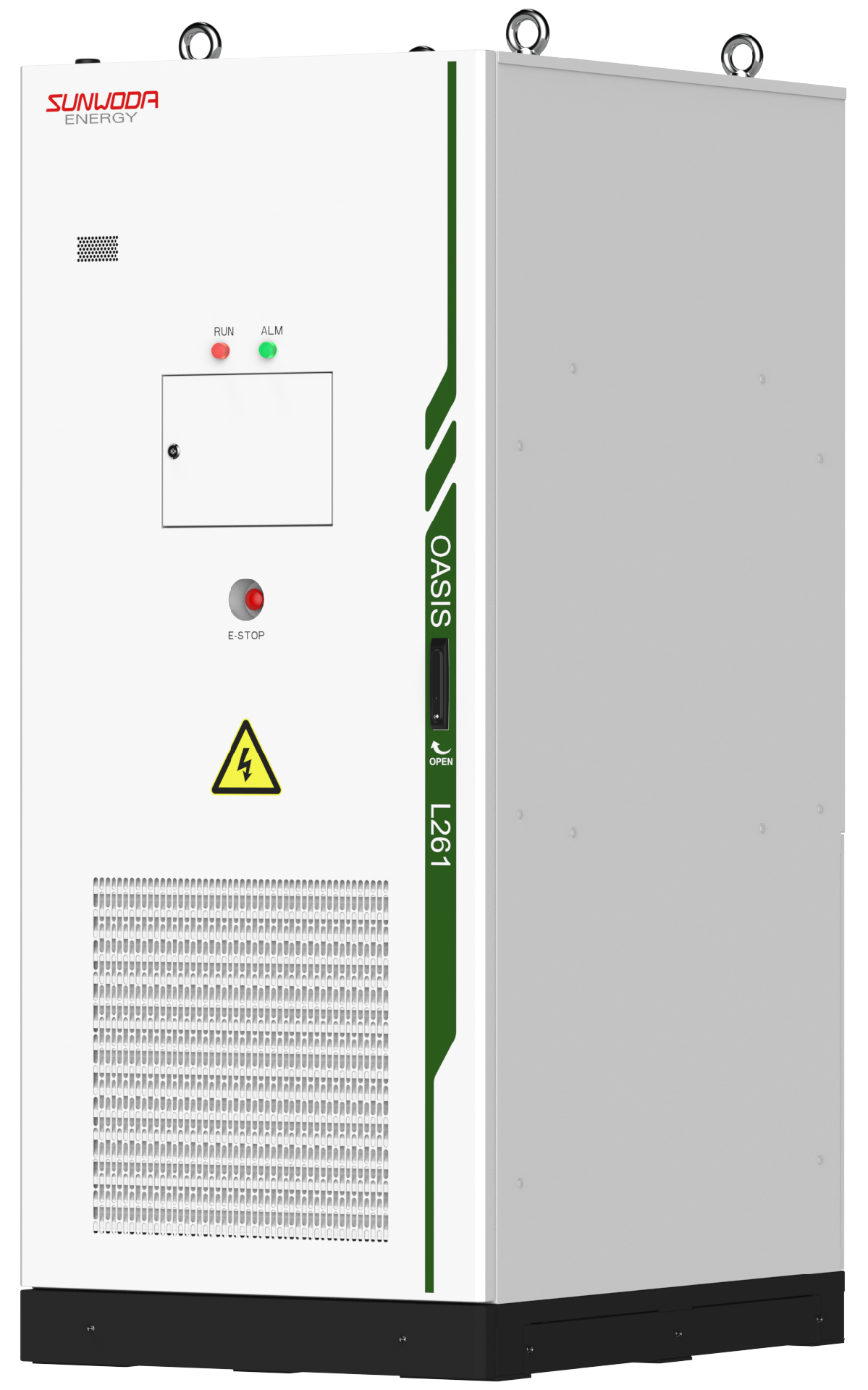

C&I Energy Storage System OASIS L261/L261 All-in-One

The OASIS L261 Commercial & Industrial Series is a high-security, high-reliability, standardized product line developed for commercial and industrial applications.
Features
Feature Description
This product features a modular system configuration that flexibly adapts to various commercial and industrial scenarios, supporting grid-connected applications. It enables parallel expansion for convenient system scaling, facilitates peak-valley shifting and staggered electricity usage, and alleviates grid pressure. Suitable for applications demanding high grid continuity, this commercial and industrial energy storage solution supports peak shaving, valley filling, and emergency backup power scenarios. The system comprises a PACK, control box, PCS (optional), STS (optional), BMS and fire suppression system, etc.
Long Life Cell
Adopting SUNWODA self-developed long life battery cells.
Multi-Protection Design
Multiple sensors + aerosol fire suppression + anti-explosion valve + water fire protection port.
Flexible Installation
Modular, plug and play, parallel expansion.
Third-Party PCS
Supports matching with mainstream inverter manufacturers on the market, offering flexible combinations.
scene
What can we use it for
clean energy
C&I energy storage applications
outdoor battery cabinet
Cooperate with small renewable energy power generation
outdoor battery cabinet
User side response
outdoor battery cabinet
Integrated energy management for C&I park
parameter
Understand its internal structure in detail
  • Cell Specification
    3.2V 314Ah
  • PACK Capacity
    52.2 kWh
  • No. of Packs
    5
  • Rated Capacity
    261 kWh
  • Rated Voltage
    832 V
  • Voltage Range
    702~936 V
  • Communication Interface
    CAN / RS485 / Internet
  • Cooling Mode
    Liquid Cooling
  • Installation Mode
    Outdoor
  • Protection Grade
    IP55
  • Ambient Temperature
    -30°C~+55°C (>45℃ derating)
  • Ambient Humidity
    5%~95% (no condensation)
  • Altitude
    2000 m
  • Cell Cycle Life
    9000 times (25℃, 0.5C/0.5C, 90%DOD, EOL70%)*
  • Dimensions (W*H*D)
    980*2350*1390 mm
  • Weight
    <2300 kg
  • Certification
    UN38.3 / CE / IEC
  • *For warranty instructions, please refer to the warranty terms.
  • Cell Specification
    3.2V 314Ah
  • PACK Capacity
    52.2 kWh
  • Rated Capacity
    261 kWh
  • Rated Voltage
    832 V
  • Communication Interface
    CAN / RS485 / Internet
  • Cooling Mode
    Liquid Cooling
  • Installation Mode
    Outdoor
  • Protection Grade
    IP55
  • Ambient Temperature
    -30℃~+55℃ (>45°C derating)
  • Ambient Humidity
    5%~95% (no condensation)
  • Altitude
    2000 m
  • Cell Cycle Life
    9000 times (25℃, 0.5C/0.5C, 90%DOD, EOL70%)*
  • Dimensions (W*H*D)
    980*2350*1390 mm
  • Weight
    <2400 kg
  • *For warranty instructions, please refer to the warranty terms.
