c&i energy storage

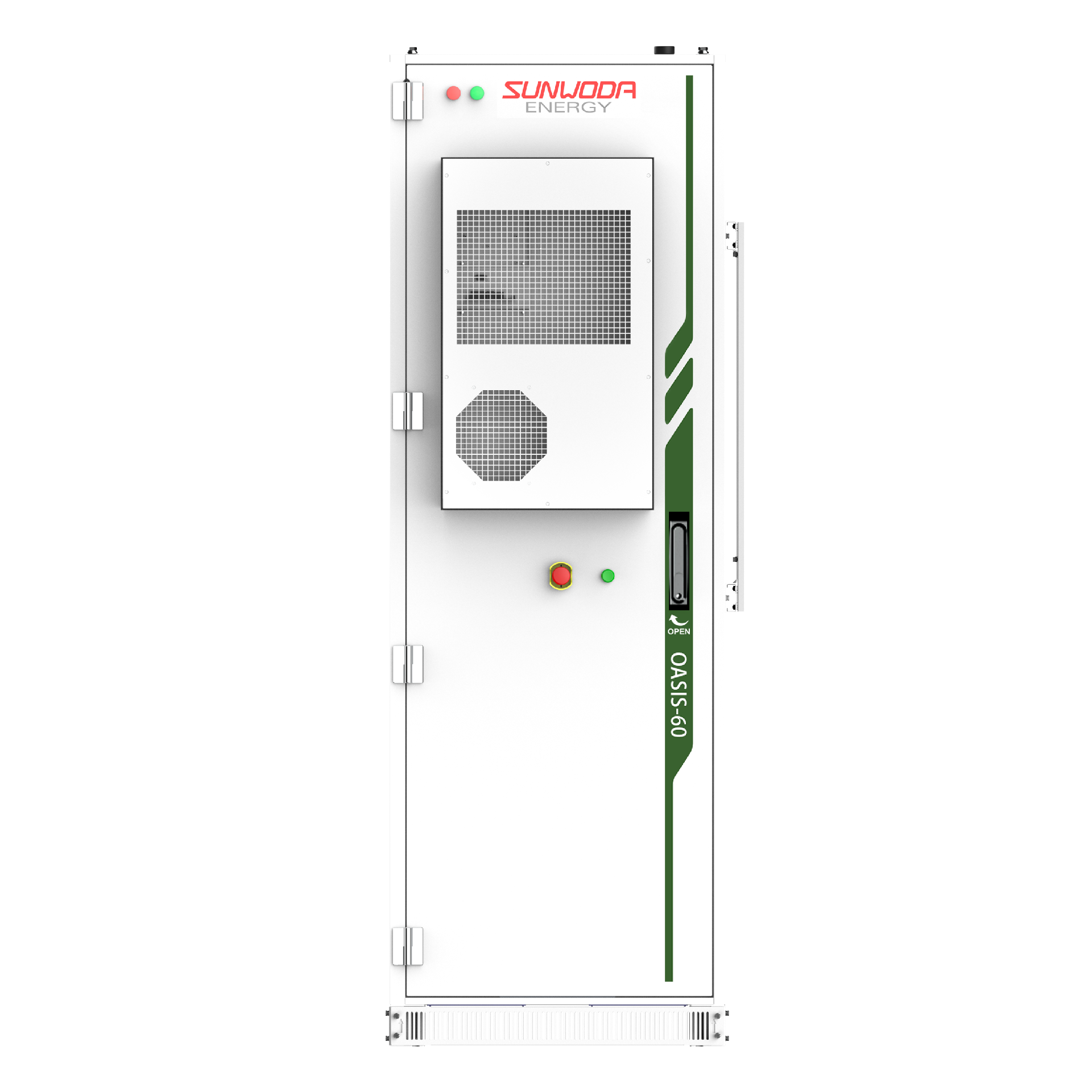

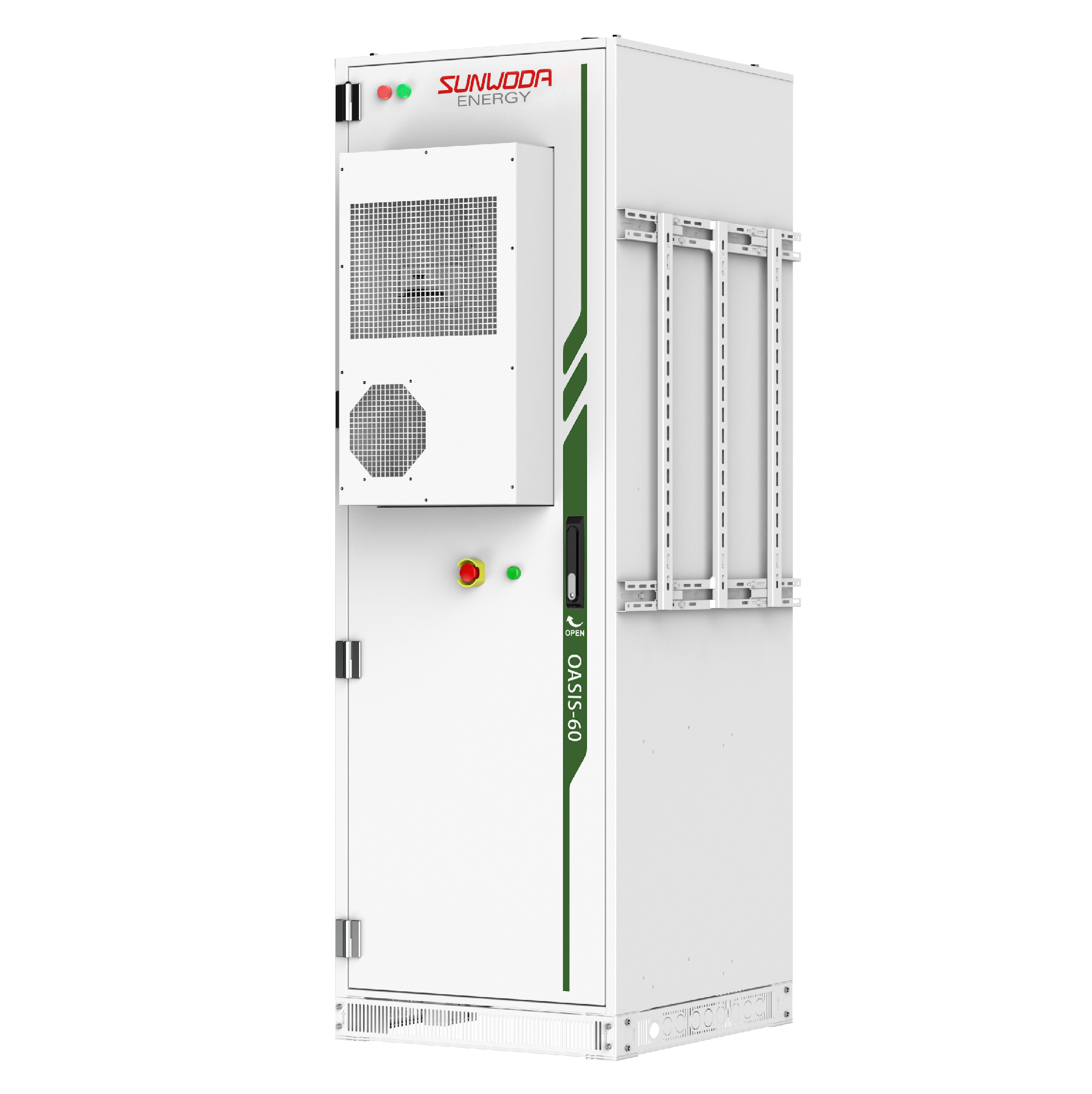

C&I Energy Storage System OASIS 60

It can apply to demand regulation and peak shifting and C & I energy storage, etc.
Features
Feature Description
Easy to install and deploy with large space utilization; Unique modular design & flexible function configuration; With self-use, peak shifting, forced charging & discharging and other working modes; Strong scalability, simple & convenient to expand;
Multi-Output Power
The inverter with different power can be selected, and the maximum support is 1c
High Performance BMS
Multi-level distributed architecture, neural network intelligent SOC and SOH algorithm
Multi-Protection Design
Cluster level+system level+partition safety isolation

Flexible Installation
Modular, plug and play, parallel expansion
Intelligent Management
Real-time monitoring, remote operation and maintenance, multi-platform display
scene
What can we use it for
clean energy
C&I energy storage applications
c&i energy storage
Cooperate with small renewable energy power generation
c&i energy storage
User side response
c&i energy storage
Integrated energy management for C&I park
parameter
Understand its internal structure in detail
  • Battery number
    12pcs
  • Rated voltage
    614.4V
  • Voltage range
    537.6~691.2V
  • Max. C-rate
    1C
  • Rated energy
    60kWh
  • Weight
    800Kg
  • Dimensions
    731*767*2116mm(L*W*H)
  • Expansion
    Supports up to 6 battery cabinets in parallel
  • Protection level
    IP55
  • Temperature control method
    Air-conditioning
  • Ambient temperature
    -20~55℃
  • Recommended storage temperature
    -20~30℃
  • Working humidity
    10~95%RH (without condensation)
  • Communication
    CAN/RJ45/Wi-Fi
  • Warranty
    5 years*
  • Max. working altitude
    2000m
  • Cycle life
    6000 cycles (25℃, 0.5C, 0.5C, 90%DOD, EU60%)
  • Basic protection functions
    Charge overvoltage, discharge under voltage, short circuit, over temperature, overcurrent, protection, etc.
  • Accreditation
    IEC62919-1/C1/NJ33.3/IEC62477
  • *For warranty instructions, please refer to the warranty terms.
