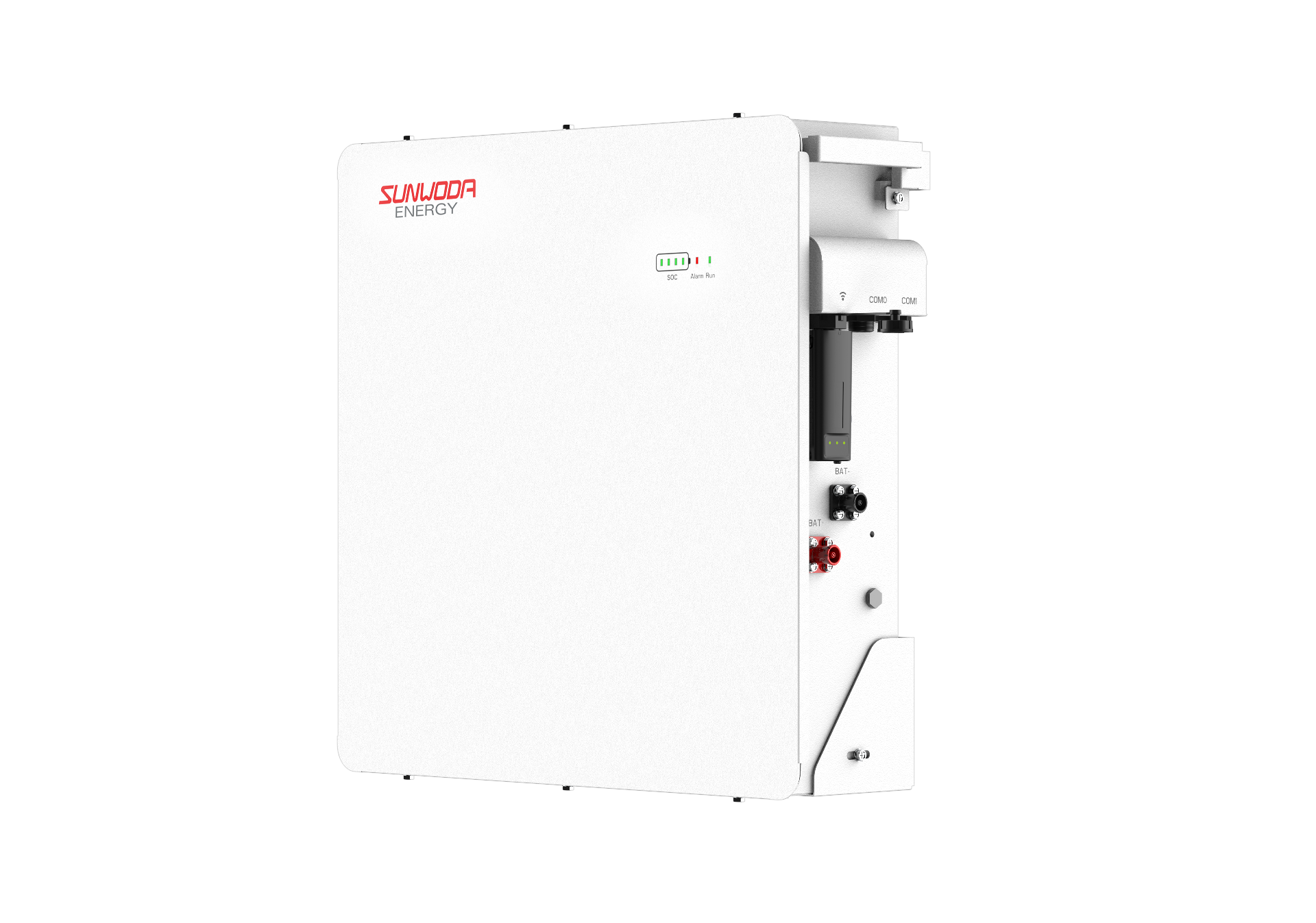

Wall Mounted Battery MonaWall-SE5

SUNWODA INSIDE, POWER YOUR LIFE

Take Control of Your Power with the MonaWall-SE5

Household energy storage system MonaWall-SE5 integrated plug-and-play connection solution, compact design, and minimal weight simplify its installation, operation, and maintenance. MonaWall-SE5 design external Wi-Fi module for optional, compatible to manage up to 16 parallel. Importantly, the system ensures a stable and reliable power supply with more clean energy and efficiency.

Flexible Application

Optimized for wall-mounted installation
Modular design, easily expand capacity

Easy to Install

plug-and-play
Compact and Light
2-people installation

Excellent Performance

100% DOD

Wider Temperature Range -20℃~50℃

Defines the Harsh Cold

APP Controlled (optional）

Real time monitoring
Remote maintenance and upgrades

Sunwoda Energy - MonaWall-SE5

Sunwoda Inside, Power Your Life

Flexible Home Energy Storage with MonaWall-SE5

MonaWall-SE5 with renewable energy system

Store Energy for When You Need It

When charged with electricity from compatible renewable energy sources, such as solar PV, MonaWall-SE5 stores it for later use, helping power your home and provide backup during grid outages.

Home Energy Management at Your Fingertips

With an intuitive energy management app, homeowners can monitor energy generation, storage, and consumption at home or on the go using compatible Android, iOS, and web platforms.

MonaWall-SE5 electricity cost management

Manage Your Electricity Costs

Where time-of-use tariffs are available, MonaWall-SE5 can store electricity during lower-price periods for use during higher-price periods. This may help reduce electricity costs, depending on local tariffs, system configuration, and household energy use.

MonaWall-SE5 on-grid and backup power application

Flexible On-Grid and Backup Operation

MonaWall-SE5 supports a range of residential energy storage applications, helping households manage everyday energy use and maintain backup power when the system is appropriately configured.

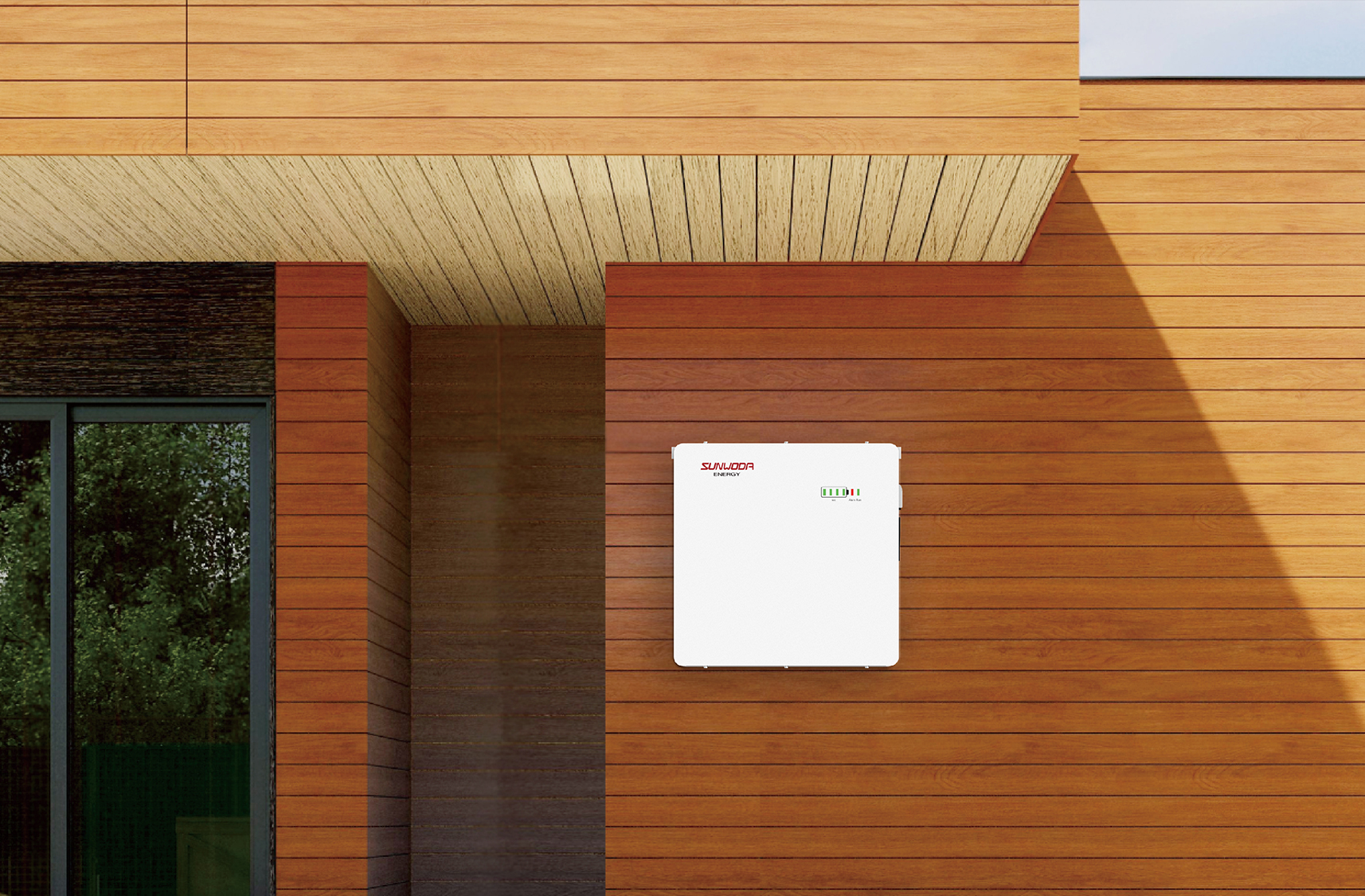

Sunwoda MonaWall-SE5 wall-mounted home battery

Wall-Mounted Design for Flexible Installation

MonaWall-SE5 features a compact, wall-mounted design that supports flexible installation in suitable indoor and outdoor locations, helping save floor space while integrating neatly into residential environments.

MonaWall-SE5 residential energy management

Smarter Energy Use at Home

MonaWall-SE5 helps households store electricity for later use and manage energy more flexibly. When charged from compatible renewable energy sources, such as solar PV, it can help increase the use of locally generated electricity and reduce electricity drawn from the grid.

parameter

Understand its internal structure in detail

Nominal Energy

5kWh
Usable Energy (100% DOD)¹

5kWh
Rated Voltage

51.2V
Charge/Discharge Cut Off Voltage

44.8V~55.2V
Rated Charge/Discharge Current²

50A/80A
Max. Charge/Discharge Current²

100A/100A
Communication Interface

CAN 2.0/RS485
Scalability

Max. 16 in parallel, Max. 80 kWh
Installation Location

Outdoor or indoor
Ambient Temperature

-20°C to 50°C
Humidity

5% to 95% (no condensation)
Dimensions (W × H × D, mm)

544 × 533 × 162
Weight

53kg
Enclosure Protection Rating

IP65
Altitude

<4000m
Cooling

Natural convection
Warranty³

10 years
Certifications

IEC62619/CE/CEI 0-21/UN38.3
1. Test conditions: 100% DOD, 0.2C charge & discharge at 25℃.
2. The current is affected by temperature and SOC.
3. For warranty instructions, please refer to the warranty terms.
