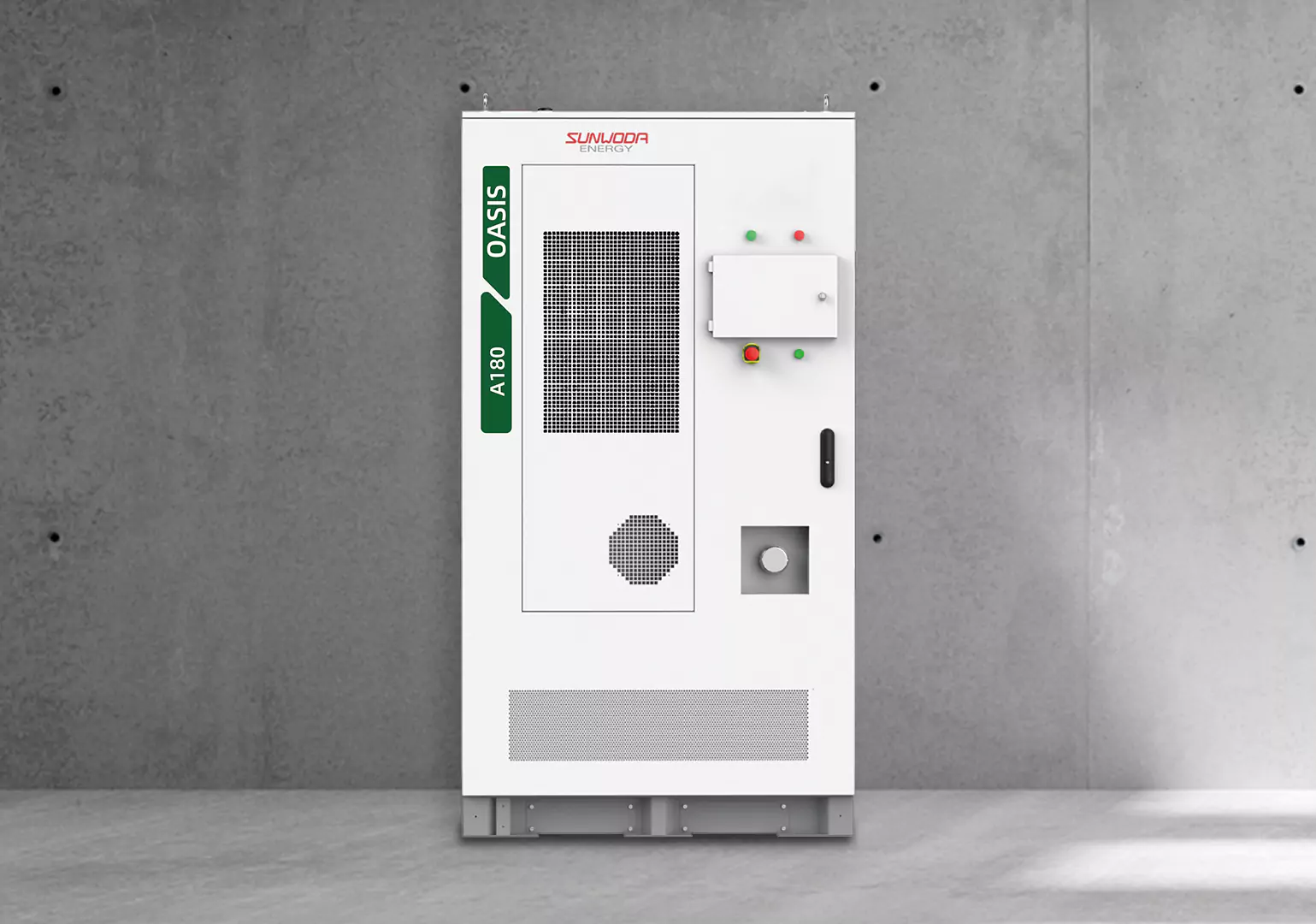

C&I Energy Storage System OASIS A180

C&I Energy Storage System OASIS A180

It can apply to demand regulation and peak shifting and C & I energy storage, etc.
Home Products
MEET Scene Parameter Contact
Features
Feature Description
The OASIS A180 is a versatile energy storage solution designed for seamless integration with photovoltaic systems and external hybrid inverters. It supports DC-coupled PV input and offers high system integration for flexible configurations, helping to reduce energy waste and maximize solar utilization. Ideal for peak shaving and valley filling, it enables users to store energy when costs are low and use it during peak hours to reduce electricity expenses. In case of power outages, the OASIS A180 ensures uninterrupted backup for critical loads, serving as a reliable alternative to traditional UPS systems. It also supports microgrid applications in remote or off-grid areas and features an intelligent EMS with cloud platform capabilities for real-time monitoring, remote scheduling, and efficient energy management.
Multi-Output Power
The inverter with different power can be selected, and the maximum support is 1C
High Performance BMS
Multi-level distributed architecture, neural network intelligent SOC and SOH algorithm
Multi-protection Design
Cluster level + system level + active explosion venting + partition security isolation
Flexible Installation
Modular, plug and play, parallel expansion
Intelligent EMS
Real-time monitoring, cloud set dimension, multi-platform display
scene
What can we use it for
clean energy
C&I energy storage applications
outdoor battery cabinet
Cooperate with small renewable energy power generation
outdoor battery cabinet
User side response
outdoor battery cabinet
Integrated energy management for C&I park
parameter
Understand its internal structure in detail
sunwoda c&i energy storage Oasis A180

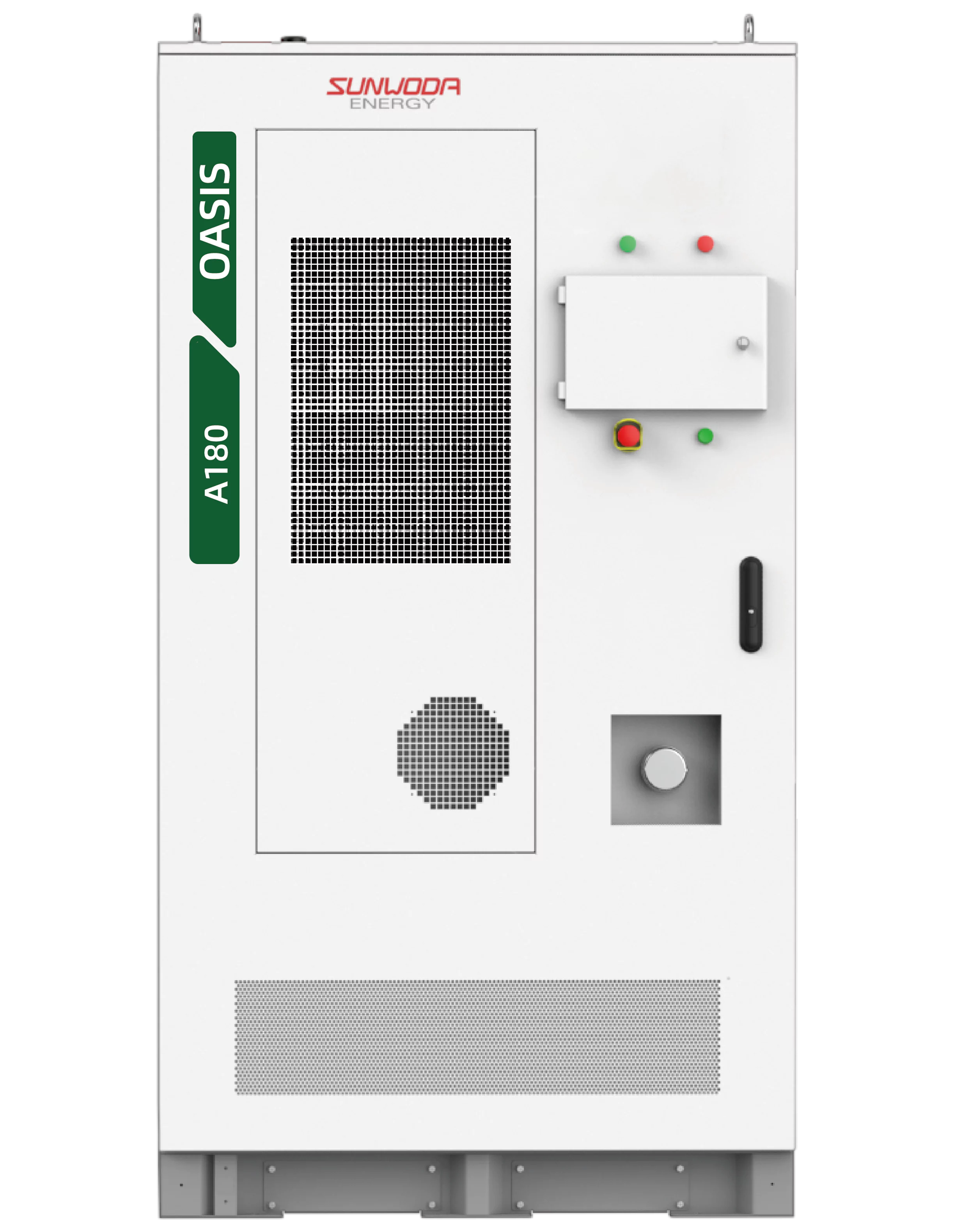

sunwoda outdoor battery cabinet OASIS A180 All-in-One
Oasis A180 OASIS A180 All-in-One
  • Cell Specification
    3.2V 280Ah
  • PACK Capacity（kWh）
    17.92
  • PACK quantity
    6~10
  • Rated Capacity（kWh）
    107.52~179.2
  • Rated Voltage（V）
    384~640
  • Max. Charge and Discharge Ratio
    1C
  • Communication Interface
    CAN、RS485、Internet、WiFi
  • Cooling Mode
    Industrial Air-conditioning
  • Display
    Touch Screen, Cloud Platform, APP
  • Installation Mode
    Outdoor
  • Protection Grade
    IP55
  • Ambient Temperature

    -25～+55℃（＞45℃ derating）

  • Ambient Humidity

    0~95%，No Condensation

  • Altitude

    3000m

  • Cell Cycle Life

    9000time (25℃，0.5C/0.5C，EOL70%)*

  • Size（W *D* H）

    1150*1375*2200mm

  • Weight

    ＜2300kg

  • Certification

    UN38.3、CE、IEC

Brochure/User Manual
  • Cell Specification
    3.2V 280Ah
  • PACK Capacity（kWh）
    17.92
  • Rated Capacity（kWh）
    179.2
  • Rated Voltage（V）
    640
  • Max. Charge and Discharge Ratio
    1C
  • Communication Interface
    CAN、RS485、Ethernet、WiFi
  • Cooling Mode
    Industrial Air-conditioning
  • Display
    Touch Screen, Cloud Platform, APP
  • Installation Mode
    Outdoor
  • Protection Grade
    IP55
  • Ambient Temperature

    -25～+55℃（＞45℃ derating）

  • Ambient Humidity

    0~95%，No Condensation

  • Altitude

    3000m

  • Cell Cycle Life

    9000time (25℃，0.5C/0.5C，EOL70%)*

  • Size（W *D* H）

    1150*1375*2200mm

  • Weight

    ＜2400kg

  • Certification

    UN38.3、CE、IEC

Brochure/User Manual
