c&i energy storage

C&I Battery Rack

It can apply to demand regulation and peak shifting and C & I energy storage, etc.
Home Products
MEET Scene Parameter Contact
Features
Feature Description
Strong Scalability
Simple & convenient expansion on DC sides
Smart
Real time monitoring , remote maintenance and upgrades
Modular Design
Unique modular design & flexible function configuration
Easy Installation
Easy to install and deploy with large space utilization
scene
What can we use it for
clean energy
C&I energy storage applications
c&i energy storage
Cooperate with small renewable energy power generation
c&i energy storage
User side response
c&i energy storage
Integrated energy management for C&I park
parameter357
Understand its internal structure in detail

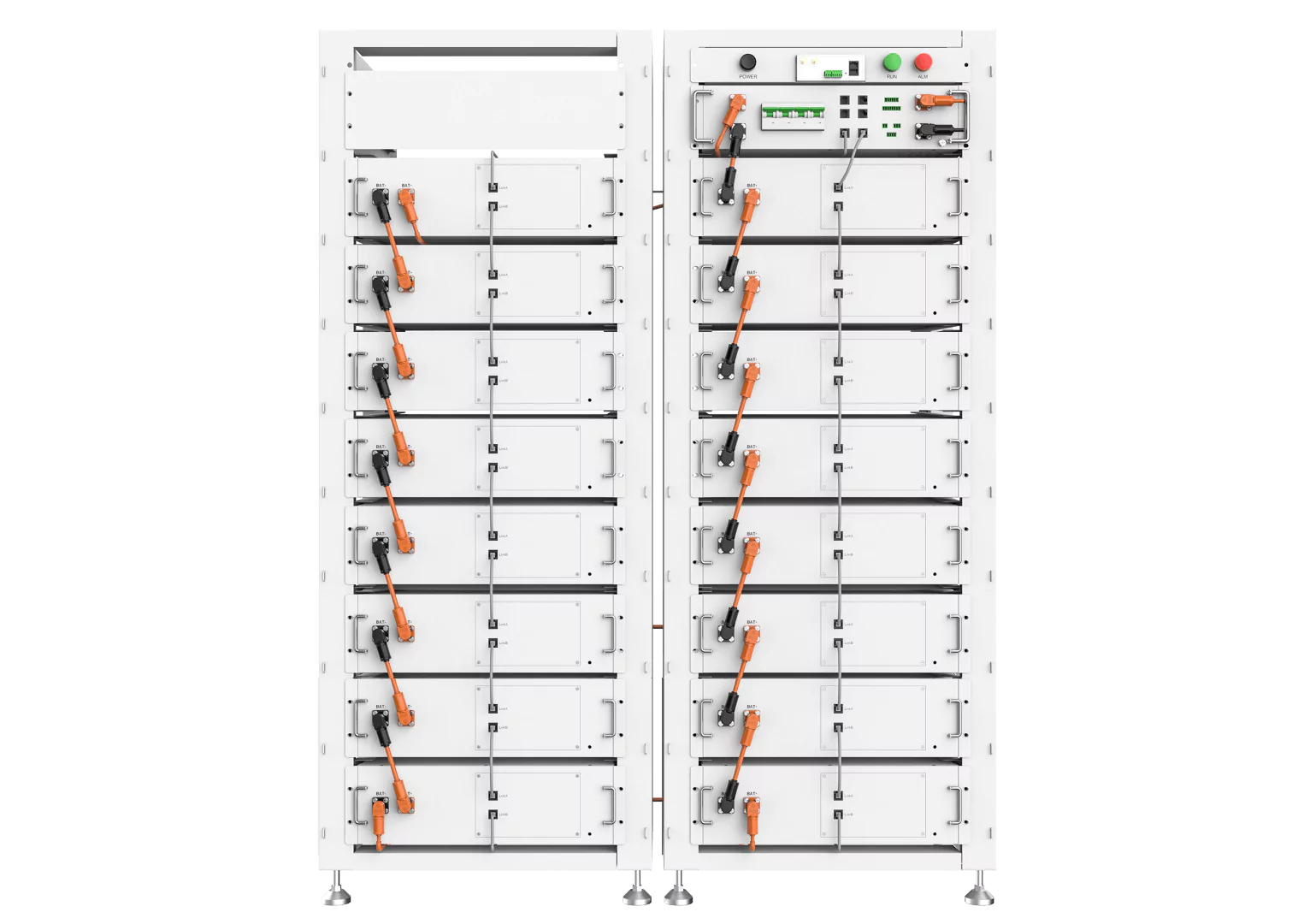

sunwoda c&i energy storage-3060

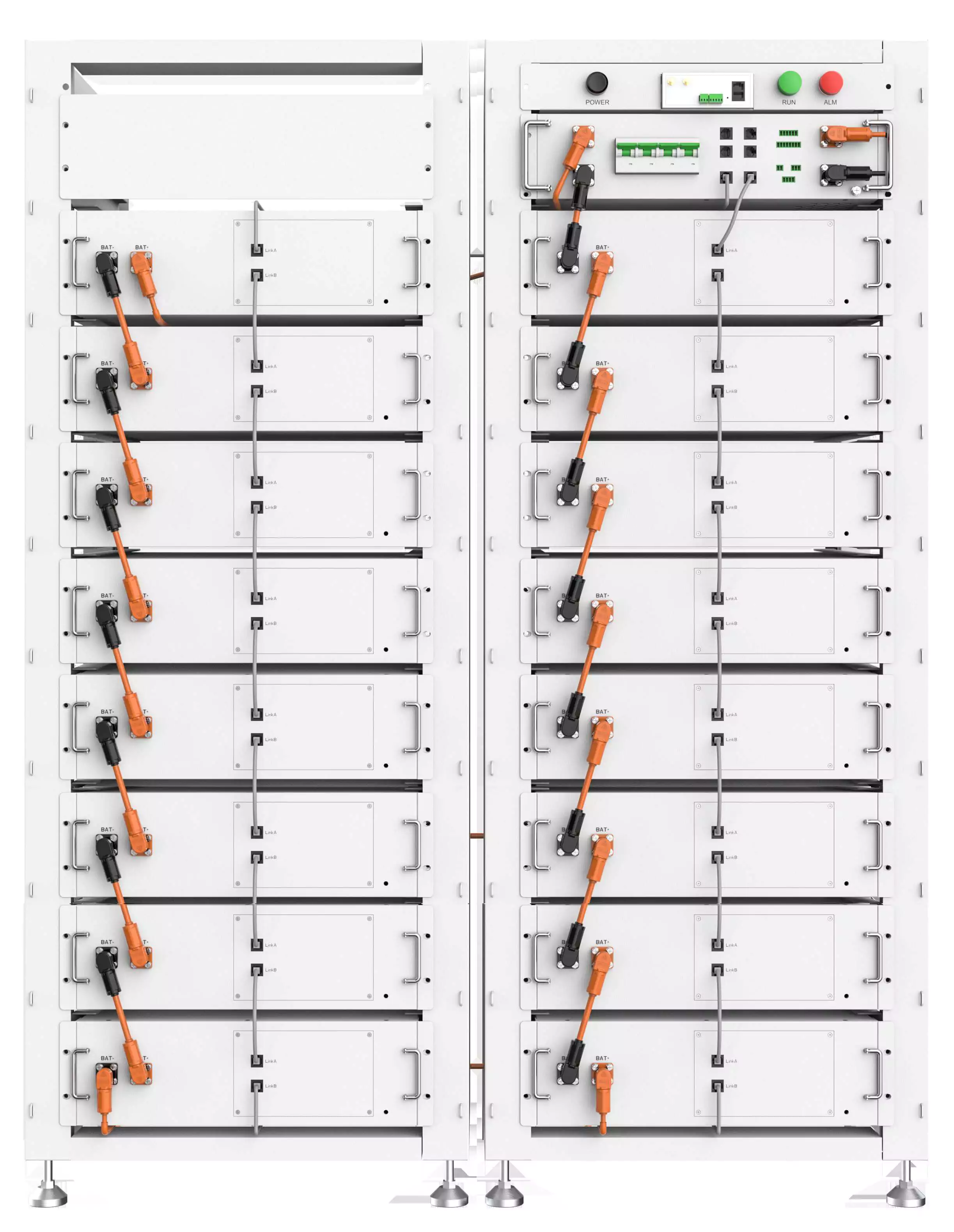

sunwoda C&I Battery Rack-Simple
C&I Battery Rack C&I Battery Rack-Simple
  • Number of battery packs
    5-12
  • Rated voltage
    256-614.4V
  • Voltage range
    224-681.6V
  • Rated energy
    25-60kWh
  • Usable energy(90%DOD)
    22.5-54kWh
  • Max.continuous charging/discharging current
    100A/100A
  • Weight
    311-650kg
  • Dimension(W*D*H)
    605*588*1470mm/605*588*2070mm
  • Cycle life
    6000times（25℃，0.5C/0.5C，90%DOD，EOL70%）
  • Communication
    CAN/RS485/WiFi/ETH
  • Expansion
    Support in parallel up to 3 clusters
  • Enclosure protection rating
    IP20
  • Cooling
    Natural cooling
  • Ambient temperature
    Charge:0-50℃/Discharge:–20-50℃
  • Humidity
    10%~95%RH
  • Altitude
    ＜2000m
Brochure/User Manual
  • Number of battery packs
    5-12
  • Rated voltage
    256-614.4V
  • Voltage range
    224-681.6V
  • Rated energy
    25-60kWh
  • Usable energy(90%DOD)
    22.5-54kWh
  • Max.continuous charging/discharging current
    100A/100A
  • Weight
    248-570kg
  • Dimension(W*D*H)
    480*410*1040mm-1180*410*1210mm
  • Cycle life
    6000times（25℃，0.5C/0.5C，90%DOD，EOL70%）
  • Communication
    CAN/RS485/WiFi/ETH
  • Expansion
    Support in parallel up to 3 clusters
  • Enclosure protection rating
    IP20
  • Cooling
    Natural cooling
  • Ambient temperature
    Charge:0-50℃/Discharge:–20-50℃
  • Humidity
    10%~95%RH
  • Altitude
    ＜2000m
Brochure/User Manual
