Split, Modular,
Flexible installation

It can apply to demand regulation and peak shifting and C & I energy storage, etc.
Features
Feature Description

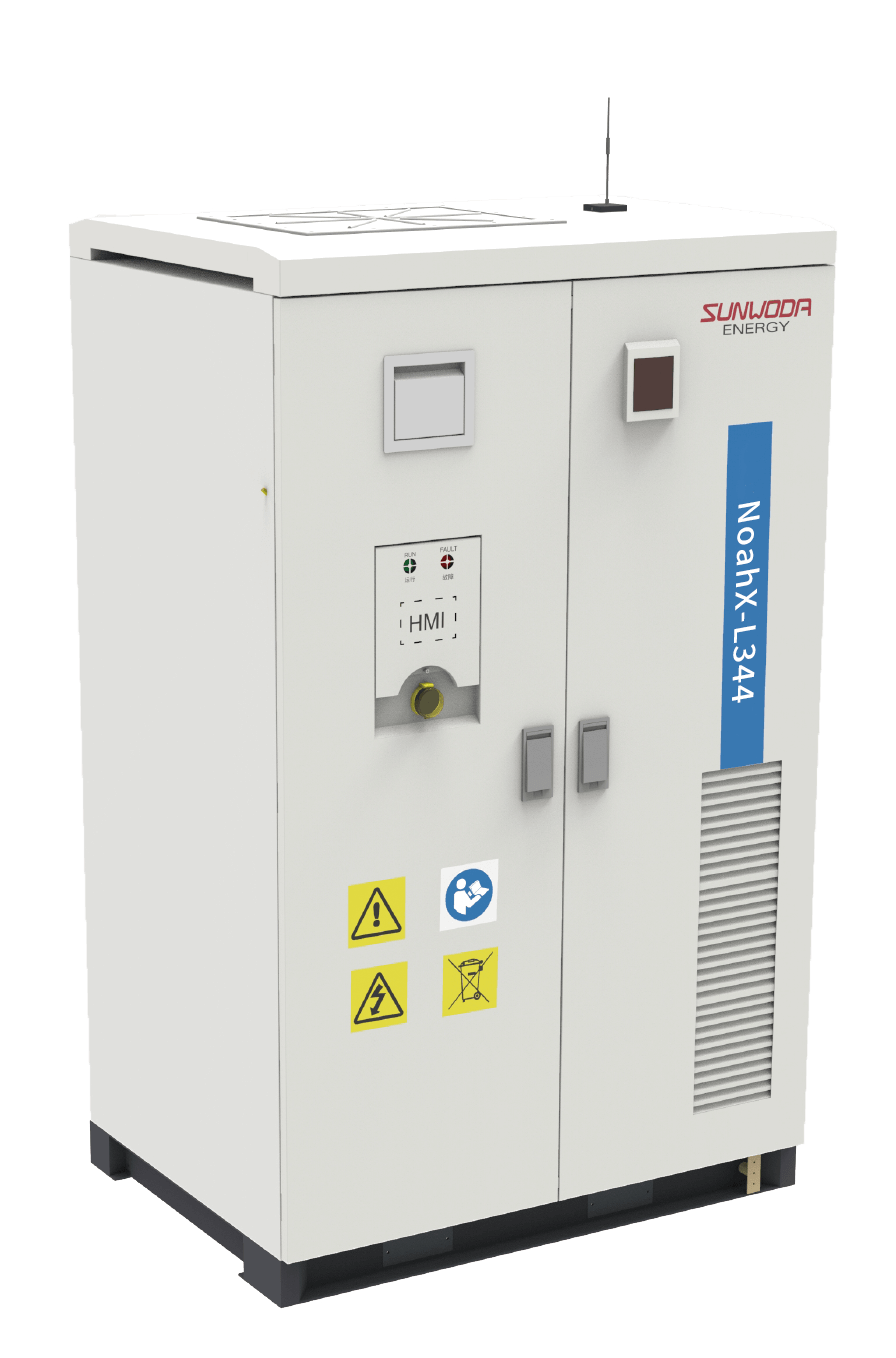

Sunwoda Outdoor Cabinet, with standard configuration of 30 kW/80 kWh, is composed of battery cabinet and electrical cabinet. It can apply to demand regulation and peak shifting and C & I energy storage, etc. Split design concept allows flexible installation and maintenance, modular design concept is easy to integrate and extend. The battery cabinet matches various mainstream PCS.
High efficiency
High charge/discharge efficiency
Advanced
Advanced thermal management system
High safety
Small footprint, flexible installation, easy maintenance
Modular design
Quick delivery, expansion to MW-level system
Flexible installation
It occupies a small space and can be expanded to a megawatt-level system
scene
What can we use it for
C&I energy storage applications
Cooperate with small renewable energy power generation
User side response
Integrated energy management for C&I park
parameter
Understand its internal structure in detail
  • Rated capacity
    344kWh
  • RTE @DC Side(0.5CP)
    >93%
  • Rated Voltage
    1228.8V
  • Voltage range
    1075.2~1382.4V
  • Working Temperature
    -30℃~55℃
  • Working Relative Humidity
    0~100%(no condensation)
  • Storage Temperature
    -40℃~60℃
  • Cell cycle Life
    8000 @25℃,0.5CP/0.5CP
  • Cooling Method
    Liquid cooling (water and glycol mix)
  • Auxiliary Power Supply
    220VAC/50Hz;110VAC/60Hz
  • Communication Interface
    CAN/RS485/Ethernet
  • Communication Protocol
    Modbus/IEC 61850
  • Altitude
    ≤3000m(derating above 3000m)
  • Standard @ Compliance
    NFPA68/69,NFPA855,GB36276,IEC62619,IEC62933,UN38.3,UN3536,UL1973,UL9540A
  • Protection Rating
    IP55
  • Fire Suppression System
    Pack level clean gas agent fire suppression +combustible gas detection and ventilation linkage+deflagration relief panel
  • Dimensions (W*D*H)
    1550*1100*2500mm
  • Weight
    3330kg
